Panel Connection - TTL

Manufacturer Texecom
Model Premier
Version 60, 88, 168, 816
Panel Firmware Range V1.x - V10.x
Cable required? Texecom TTL-molex (05-0246)
MCM or Serial Connection Serial
Panel Profile TEXECOM Profile
Panel Bus Connection TTL
Techincal Notes SIA string special character issue in troubleshooting section.
Premier Range is being phased out....

Cable Connection

WebWay Terminal Point Texecom Panel Connection
TTL - T (RED) Com Port 1 Pin 2 from right
TTL - R (Green) Com Port 1 Pin 1 from right
RTN - (Blue) Com Port 1 Pin 3 from right

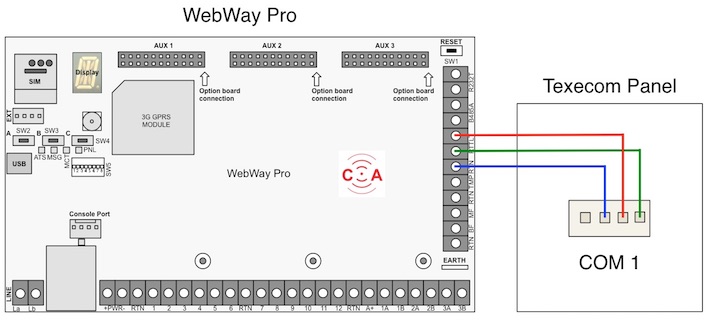

Pro Unit Connection

Pro Unit Connection

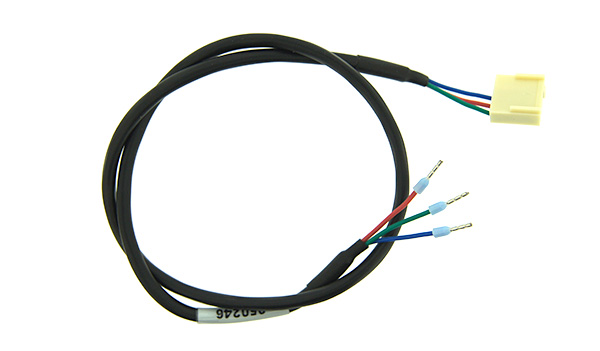

Texecom Cable 05-0246

Texecom Cable 05-0246

Panel Programming

  • Enter Engineer Mode

  • Select Options Menu
  • Enable communicator must be ticked
  • UDL passcode (set in the panel) must match.
  • Dial attempts 1, ring before answer 3

  • In ARC’s
  • Account number (site ID)
  • SIA Level 2/3
  • Connect Via IP - ticked
  • Send SIA text – ticked

  • In Radio-Pad and Com Port Options Menu
  • Under set Com Port 1 to – WebWayOne module
  • Local IP address -
  • Local IP port - 50561
  • Gateway -
  • Subnet Mask -
  • Name/SMG port - 50561

  • Log Out of Engineer Mode to establish electrical connection


  • The WebWay should be connected to Com port 1.
  • If only Com port 2 or 3 is available: Make sure the baud rate (modem speed) is set to 19200.
  • WebWay SPT Firmware V3.45 and above
  • If the Texecom is being programmed with a laptop on com port 2, the WebWay is connected to com port 1 the SPT will be lost from the panel until the Wintex session is closed.
  • Only the alarm format SIA is supported.
  • SIA String [#1234|Nri1BA004|AMain Off R - has no ']' close bracket this is likely to be due to a 'special character' in the Zone Name. EG: (!/£$^&*).

UDL information for this item can be found here:
