Panel Programming

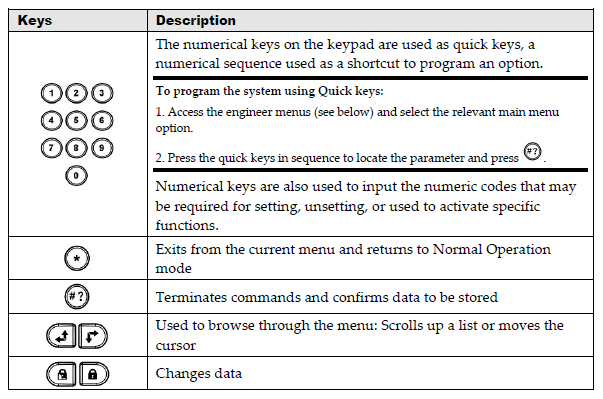

• Login to Engineer Mode [*] + Engineer Code
• Scroll to [1) System] and press [#]
• Scroll ↓ to [2) Controls] and press [#]
• Scroll ↓↓ to [3) Communication] and press [#]
• Scroll ↓↓ to [ARC ENABLE] and set to [N] and press [#]
• Screen shows [3) Communication] and press [#]
• Scroll ↓ to [Config SW Enable] and set to [Y] and press [#]
• Screen shows [3) Communication] and press [#]
• Scroll ↓↓ to [FM ENABLE] and set to [N] and press [#]
• Press [*] 2 twice you are now in the Main Menu
• Scroll ↓↓↓ to [4) Communications] and press [#]
• Scroll ↓ to [3) Config. SW] and press [#]
• Screen shows [1) Security] and press [#]
• Scroll ↓ to [2) Remote ID] and press [#]
• Modify value to [0000] and press [#]
• Screen shows [2) Remote ID] Press [*] Press ↓
• Screen shows [2) Call Back] Press [#] and set [Call Back En] to [N] and press [#]
• Press [*]
• Scroll ↓ [3) IP Gateway] Press [#] into [1) IP Address] Remove any IP Config.
• Scroll ↓ [2) IP Port] Press [#] Modify value to [00000] and press [#]
• *** If you have a GSM modules Remove Setting from this Menu ***
• Press [*] 3 times
• Screen shows [4) Communication]
• Now Exit Engineer Mode [0] and Press [#] this saves the data

Troubleshooting

• NOTE : Risco Agility has two Communication Menu’s, please check you are in the correct Communication Menu during panel programming
• NOTE: - Panel integration does not support non zone type alarms such as BV (Burglary Verified).

UDL information for this item can be found here:
