Panel Connection - MCM

Manufacturer UTC (G.E. / Aritech)
Model ATS
Version Advisor Master
Minimum Firmware Range 40.09.26
MCM Plug on required? MCM version less or equal to V1.05 - Needs SPT version less or equal to V2.06
MCM version greater or equal to V1.06 - Needs SPT version greater or equal to V2.07
MCM or Serial Connection MCM
Panel Profile ATS4000Digi-SIA
Panel Bus Connection None
Technical Notes Please see below

Cable Connection

SPT Panel

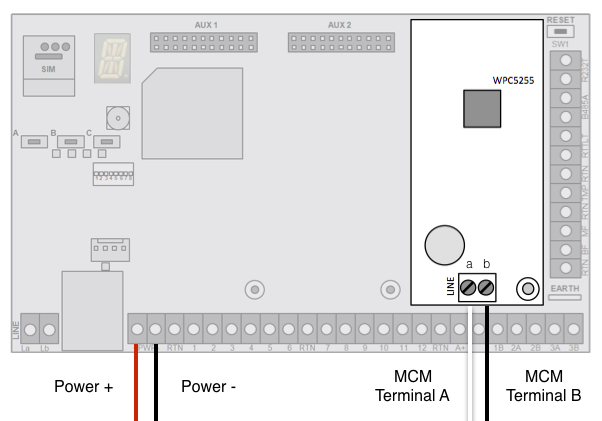

MCM plug-on module - Line a PSTN Line A
MCM plug-on module - Line b PSTN Line B


SPT and MCM module

SPT and MCM module

Panel Programming

  • Select advanced service menu
  • Go to Menu 9
  • Ensure PBX is BLANK
  • Ensure MSN is BLANK
  • Select dial tone detection (UK)
  • Select DTMF tone dialing (YES)
  • Select enable PSTN line fault monitor (NO)
  • Select Monitor Service tones (NO)
  • Select 3 digit SIA extensions (YES)
  • Select ISDN point to point (NO)
  • Select 200 baud reverse area open/close (NO)
  • Select X25 TEI value <2>
  • Select Audio listen in time <180>
  • Select Audio listen in time frame <30>
  • Select Report mains fault (YES)
  • Select Report line fault (YES)
  • Select Enable GSM line fault monitor (NO)
  • Select the central station to program (Central station1)
  • Select the reporting format (Option 7)
  • Enter the first phone number <01234 567890>
  • Enter the system account number <_____>
  • Select BELL modem tones for SIA (YES)
  • Enter the Area account number <_____>
  • Select Dual reporting (NO)
  • Select listen in (NO)
  • Select Disable reporting inhibits (NO)
  • Select reserved (NO)
  • Select X_SIA Max Characters <30>
  • Select X25 account code (Not Set)
  • Select X25 line type <0>
  • Select connection type 0 (PSTN)
  • uppress FTC for voice reporting (NO)
  • Retry Count (10)

Remote Management Programming

  • Go to menu 29
  • Select enable remote up/download (YES)
  • Select up/download if any area armed (YES)
  • Select Enable remote control (YES)
  • Select Remote control if any area armed (YES)
  • Select use modem init string (NO)
  • Select Report alarms to computer (NO)
  • Select Report access events to computer (NO)
  • Enter Computer address <0001>
  • Enter security password <0000000000> (Ten zeros)
  • Select Security attempts <255>
  • Select Number of rings before answering <1>
  • Select Number of calls before answering <0>
  • Select Answer machine defeat (NO)
  • Select Reserved (NO)

  • Use Bell 103 Protocol (NO)
  • Select Connection type 0 (PSTN)
