Panel Connection - MCM

Manufacturer Paradox
Model EVO 192
SPT Firmware Version (minimum) Nano & Pro - V2.12
Panel Firmware Range V2.1 (Minimum Firmware)
Cable required? Yes - (05 5046)
MCM, Serial or Peripheral MCM
Panel Profile Paradox EVO
Panel Bus Connection (Used for UDL) RS232
Technical Notes Remote Manager Version - V3.3.2.0 & MCM Version V1.04
MCM Wiring MCM A > Panel 'TIP' & MCM B > PANEL 'RING'

Cable Connection

PANEL SPT Colour
Molex Pin 4 TTL - R Yellow
Molex Pin 3 TTL - T Blue
Molex Pin 2 RTN Green

Alarm & UDL Images

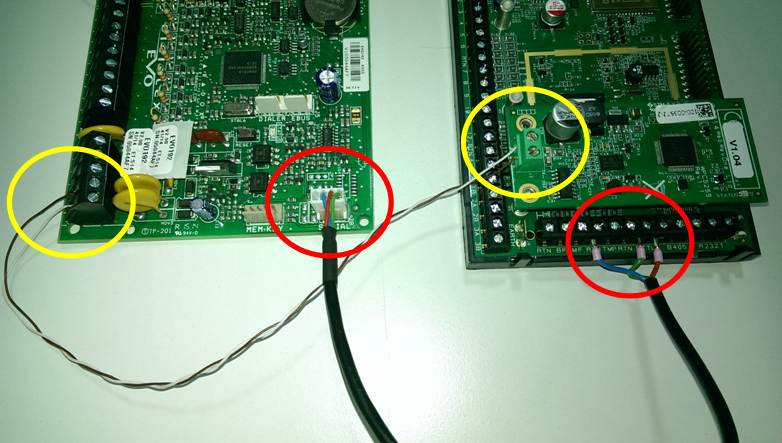

Paradox Panel to WebWay cabling connection

Paradox Panel to WebWay cabling connection

Photo TTL connections circled in red; • Blue cable (PIN 2) connects to SPT’s (RTN ) • Green cable (PIN 4) connects to SPT’s (R-TTL) • Red cable (PIN 3) connects to SPT’s (TTL-T) Photos PSTN connections circled in Yellow; • White cable connects to SPT’s (a) • Brown cable connects to SPT’s (b)

Photo TTL connections circled in red; • Blue cable (PIN 2) connects to SPT’s (RTN ) • Green cable (PIN 4) connects to SPT’s (R-TTL) • Red cable (PIN 3) connects to SPT’s (TTL-T) Photos PSTN connections circled in Yellow; • White cable connects to SPT’s (a) • Brown cable connects to SPT’s (b)

Panel Programming

  • 1. Activate dialler. In section 3036 activate sub section 3 and 4 by toggling.
  • 2. Add account number. In section 3061 insert account number.
  • 3. Add ARC telephone number. In section 3071 insert any telephone number.
  • 4. Set alarm reporting format. In section 3070 set value to 6666 (SIA level 2) or set value to 5555 (ContactID).
  • 5. Set alarm reporting format. In section 3070 set value to 6666 (SIA level 2) or set value to 5555 (ContactID).
  • 6. Confirm or set section 3011 to match the Panel ID (0000) in WinLoad.
  • 7. Confirm or set section 3012 to match the PC Password (0000) in WinLoad.

UDL Panel Settings

  • 1. Confirm or set section 3011 to match the Panel ID (0000) in WinLoad.
  • 2. Confirm or set section 3012 to match the PC Password (0000) in WinLoad.
  • .

Paradox Troubleshooting

  • Alarm Integration: MCM
  • Integration: TTL (WWO Cable: 05 5046)
  • UDL Software Name: Winloader (V5.71.5)
  • Entering Engineer Mode: Press and Hold '0' then enter 000000
  • Engineer Code: 000000
  • Master Code: 1234

UDL information for this item can be found here:
