Integration Programming

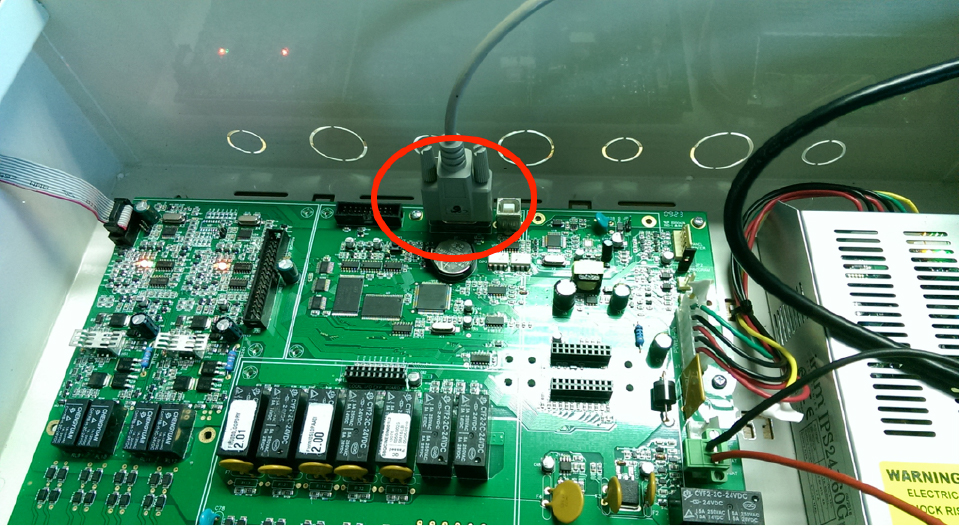

• Integration to the INIM SmartLoop fire panel is via the panel’s RS232 serial port. A protocol option of the panel is configured to report the log events and handleing UDL communications.
• Integration also supports UDL communications with INIM's SmartLook application to the fire panel via WebWay Remote Manager.
• This Panel integration supports the following SIA alarms and events.
•     Fire Alarm - FA
•     Fire Alarm Recovery - FR
•     Mains Supply Fault - YP
•     Mains Supply Recovery - YQ
•     Battery Fault - YM
•     Battery Recovery - YR
•     Panel Programming Ended - LS

Panel Set Up

• - Default panel code = 00004
• - Press the 'ESC' button to display Menu
• - Navigate to Printer settings (the 8 button)
• - Within these settings select printer set up (the 2 button)
• - Select 'Log on Serial' as printer type
• - Press the 'Return' symbol button
• - Press 'ESC' until the panel resets

UDL information for this item can be found here:
