Integration Programming

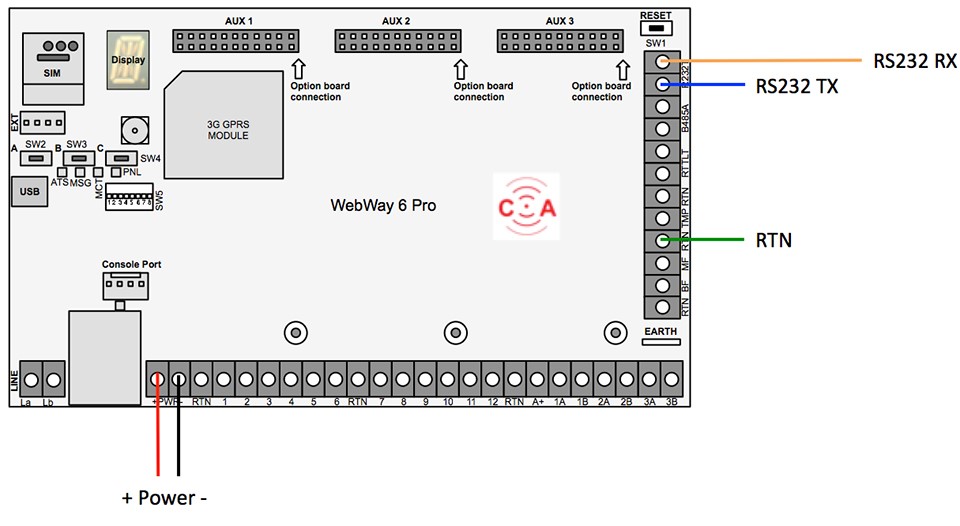

• Integration to the INIM Previdia fire panel is via the panel’s RS232 serial port.
• Integration does not currently support UDL communications.
• Please contact INIM for the list of SIA alarms the panel supports.

Panel Set Up

• - Press the 'Home' icon to display Standby screen
• - Press the ‘Programming’ button
• - Insert the installer code (default value = 00004)
• - Choose the ‘Configuration’ option
• - Press the ‘Telephone’ icon
• - Select the ‘PREVIDIA-C-COM’ checkbox
• - Press the ‘Program’ button

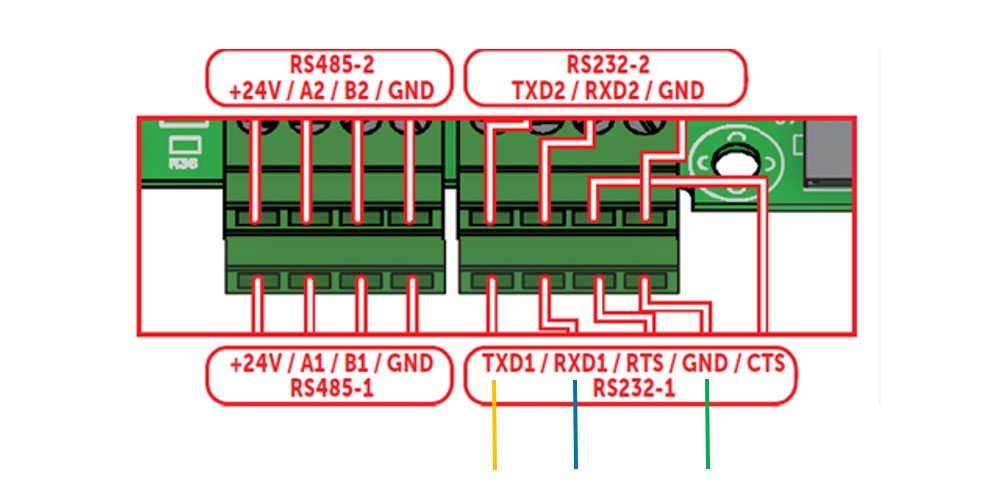

• - For RS232-1 or RS232-2 (depending on the port used to interface the SPT) choose the WebWay protocol
• - Press the ‘Set’ button to save your settings
• - Press the ‘Contacts’ button
• - Select the contact you want to assign to WebWay communication and press the ‘Program’ button
• - Edit the ‘Description’ of the contact
• - Press the ‘Set’ button to save your settings
• - Press the ‘Esc’ button
• - Press the ‘Actions’ button
• - Choose an existing action (‘Generic alarm’ and ‘Generic fault’ by default) or an empty one and press the ‘Program’ button
• #NAME?
• - Press the ‘Associated Contacts’ button
• - Select the checkbox related to the contact assigned to WebWay communication
• - Press the ‘Set’ button to save your settings
• - Press the ‘Set’ button to save your settings
• - Press the ‘Esc’ button
• - Press the ‘Set’ button to save your settings
• - Press the 'Home' icon to display Standby screen
• #NAME?

UDL information for this item can be found here:
