Panel Connection - Ethernet Module

Manufacturer Honeywell
Model Galaxy - Flex/Flex+
Version Flex/Flex+ - 20, 50, 100
Minimum Panel Firmware Minimum V3.37
Cable required? No - (WWO Cable 050222 is available)
MCM, Serial or Peripheral Serial
Panel Profile HONEYWELL_FLEX
Panel Bus Connection RS485
SPT Firmware Nano & Pro V2.12 (Minimum Version)
Technical Notes Upon Reboot of the WebWay on ALL firmwares will result in a Unconfirmed Tamper Alarm submitted to the ARC

Cable Connection

PANEL - Standard 3 core cable
OR
WWO Cable: 050222 		SPT Colour
A
OR
RS485 Engineer Header, Pin 3		 485 A Red Wire
B
OR
RS485 Engineer Header, Pin 4		 485 B Brown Wire
GND
OR
RS485 Engineer Header, Pin 2		 RTN
(Required)		 Green Wire

Images

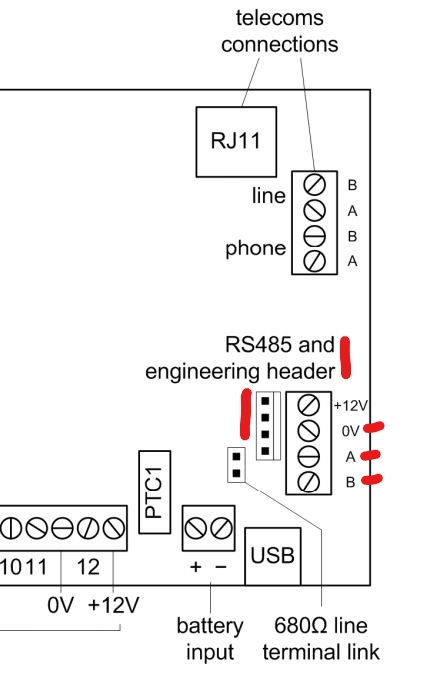

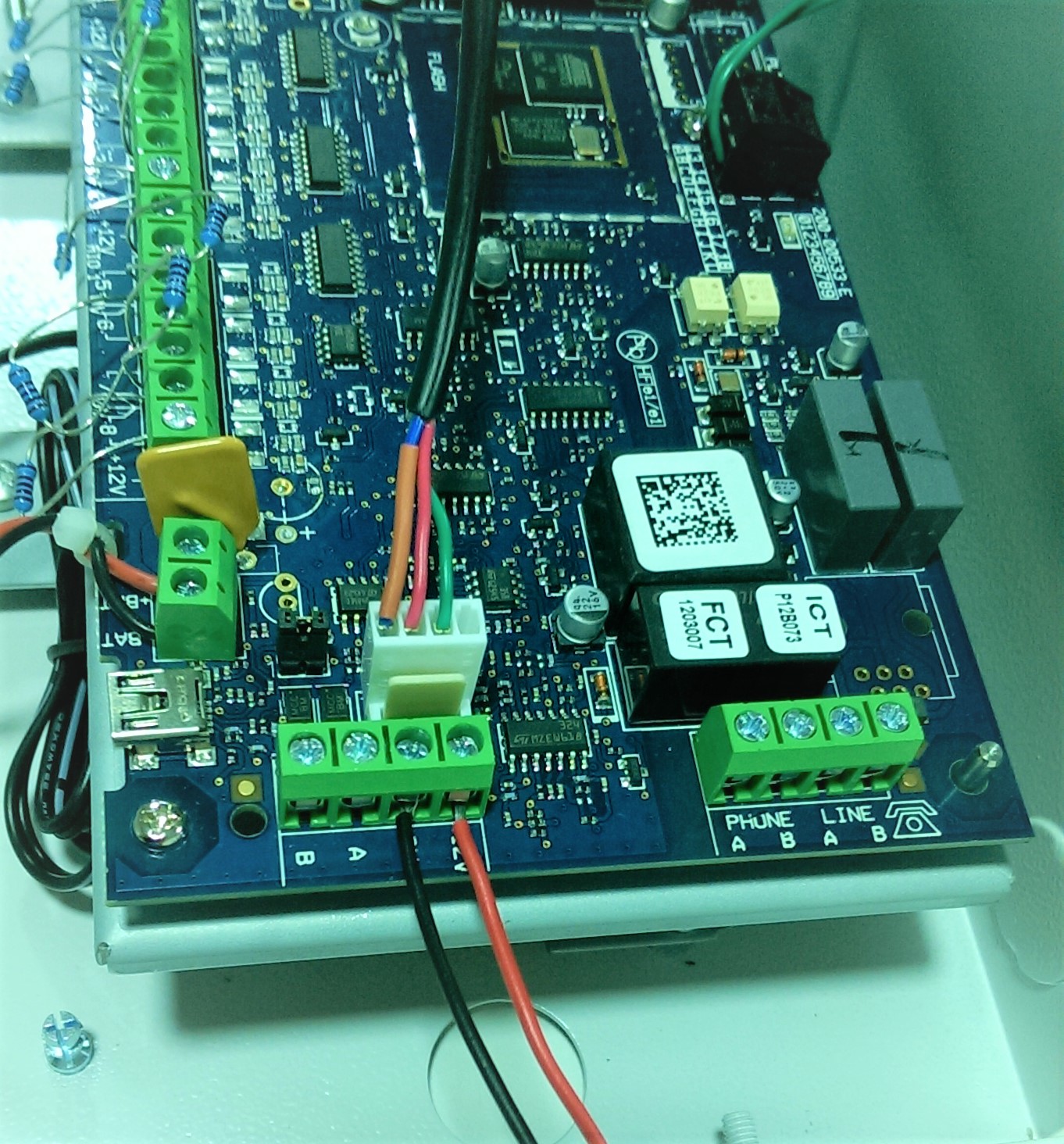

Galaxy Flex Panel Connections

Galaxy Flex Panel Connections

Panel Layout

Panel Layout

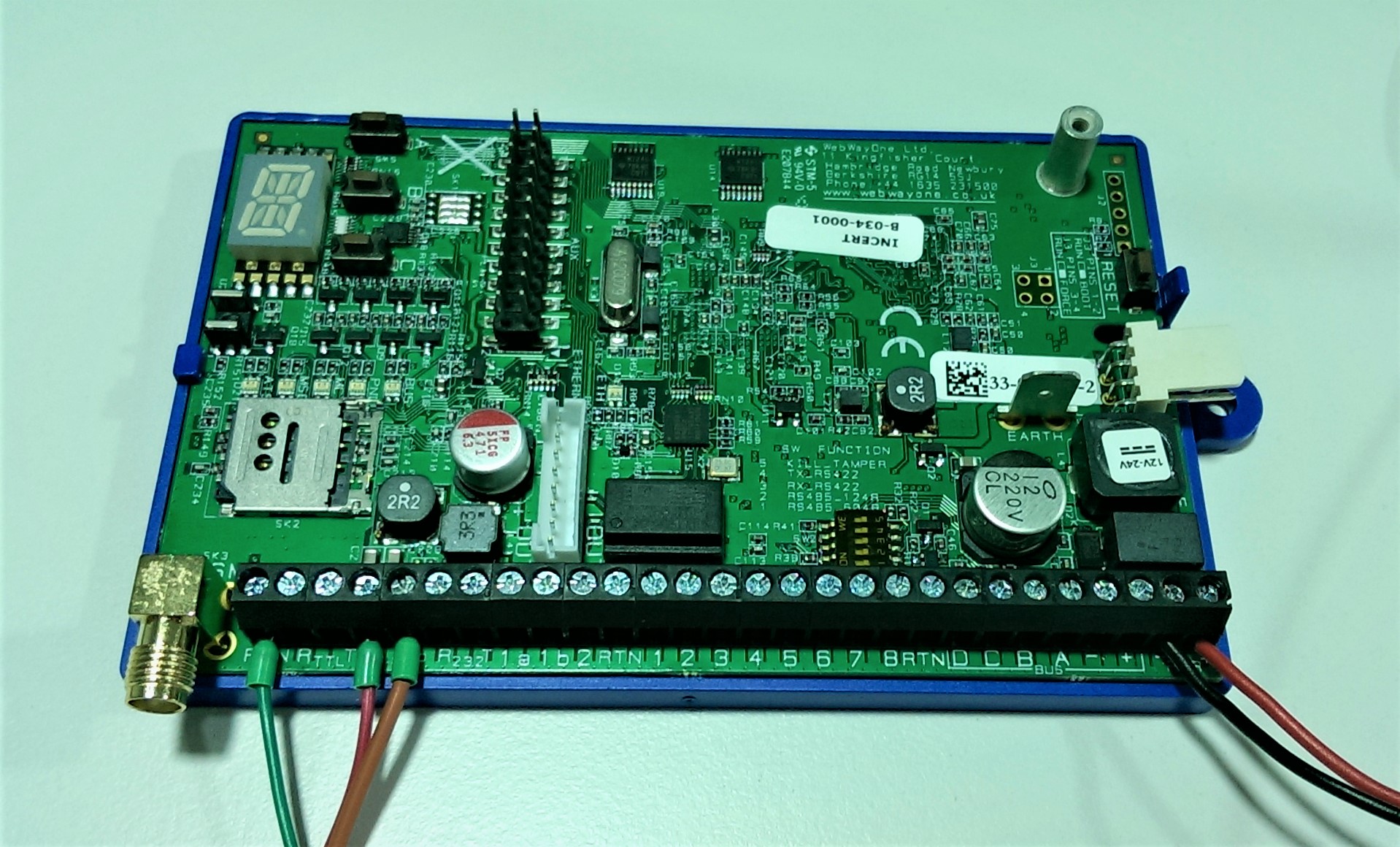

SPT Nano Connections

SPT Nano Connections

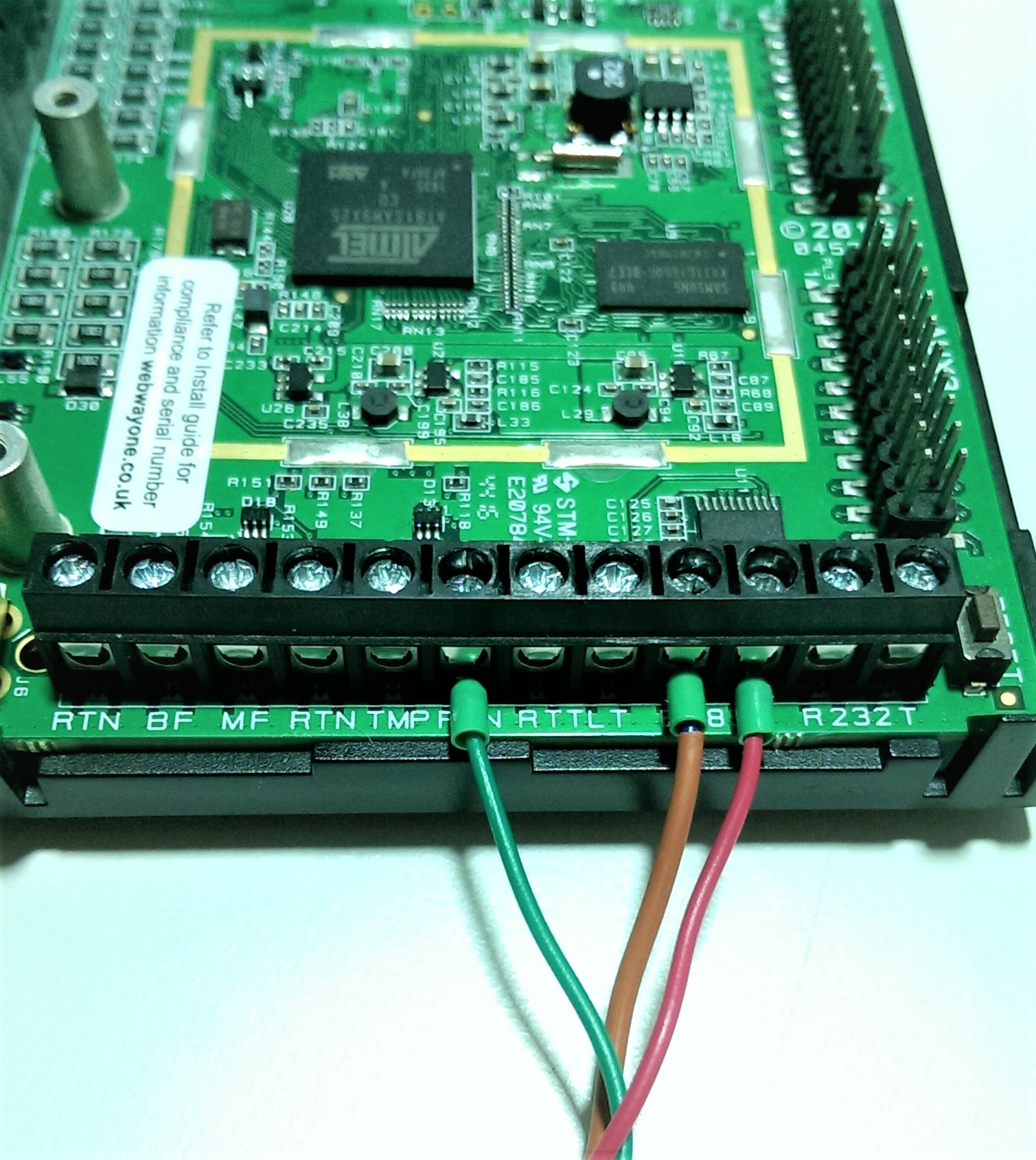

SPT Pro Connections

SPT Pro Connections

Panel Programming -
****In maintenance mode - check later****

  • Enter Engineering Mode.
  • Menu 56 = Communications
  • ARC Wizard
  • 56.8 – Arc Wizard set to Yes
  • 56.8.4 - Path
    >>>IP Address set to 127.0.0.1
    >>>Port Number set to 50561
    >>>IP Check Port No set to 10002
    >>>Format SIA press [1] for SIA
    >>>Add Backup, press [esc] for No
    >>>Account Number set to panel number
  • >>>Trigger press [ent] for Yes
    >>>Setting = 09 set enable
    >>>Menu Access = 13 set enable
    >>>Zone Restoral = 17 set disable [ADT ONLY]
  • >>>User SMS Wizard, press [esc] for No
    >>>Complete, press [ent] to continue
  • 56.3.3.1.1 – Ensure that DHCP = Enabled
  • 56.3.3.8.2 – Set Bus select to: Galaxy
  • PANEL WILL REBOOT
  • 56.1.1.1.4.3 Autotest = 0000 [Change intervals]
  • Remote Service Menu
  • 56.4.1.4 – Set Remote access period to: Anytime
  • 56.4.2. – Set Direct access
  • 56.4.2.1 - PSTN = 0 (Disabled)
  • 56.4.2.2 - GSM = 0 (Disabled)
  • 56.4.2.3 - GPRS = 0 (Disabled)
  • 56.4.2.4 - Ethernet = 1 (Enabled)
  • 56.4.2.5 - USB = 0 (Disabled)
  • Now exit into day mode.

Troubleshooting

  • Panel Profile: HONEYWELL_FLEX
  • Note: After configuring the Flex panel we suggest the panel is powered down for 10-15 seconds before powering back up. In some cases the configuration is not accepted until the panel is rebooted.
  • Minimum panel Firmware 3.37.
  • For UDL ensure latest RSS software is installed.
  • If showing line fault
    >>>56.3.1.1 - Set PSTN Fail to disabled
    >>>56.3.2.1.1 - Set GSM Line Fail to disabled
    >>>56.3.2.2.3 - Set GPRS Line Fail to disabled

Panel Limitation

  • Rebooting SPT will cause an Unconfirmed Tamper Alarm to be delivered to the ARC
  • No Routine Remote Inspection (RRI) avalible.
  • No Reverse SIA commands avalible.
