Panel Programming

• Alarms:
• Navigate to [Printer config] and press [Enter].
• Navigate to [Ext printer config] and press [Enter].
• Set baud rate for the Ext printer port to 19200.

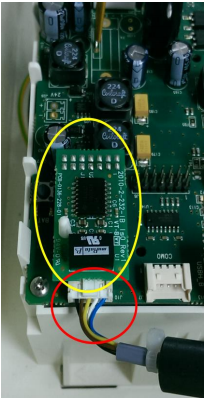

• Select [Used] and remove [tick]. This will deselect COM0 port and enable COM1 port.
• Select which events to print and press [Enter]. Exit and select [Apply] new config.
• UDL:
• UDL requires the panel be configured with a fixed IP address and connected to the same LAN network as the WebWayOne SPT is connected. The fixed IP Address is usually allocated by whomever looks after the LAN.
• Navigate to [Panel setup] and press [Enter].
• Navigate to [Communications] and press [Enter].
• Navigate to [TCP/IP] and press [Enter].
• Navigate to [IP] and set it with the panel’s newly allocated fixed IP address.
• Update [Mask] & [Gateway] with relevant network details.
• Set [Port] to 02505.

Technical Notes

• Internal Use - Panel configuration profile within Command Centre is ARITECH-2XF2S-RS232
• External Use - Default user code= 2222 Default installer code= 4444

UDL information for this item can be found here:
