Panel Support/Notes

• 1. ESMI FX Serial Connections: The SPT can be connected to the ESMI FX RS485 port. This port supports alarm signalling from the panel and it is recommended that this be used in addition to the EN54-21 signalling using the hardwired connections as detailed above.

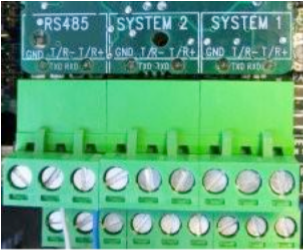

• 2. RS485 port: The connection is provided from a FX-MC card fitted with a FX-SAB module.

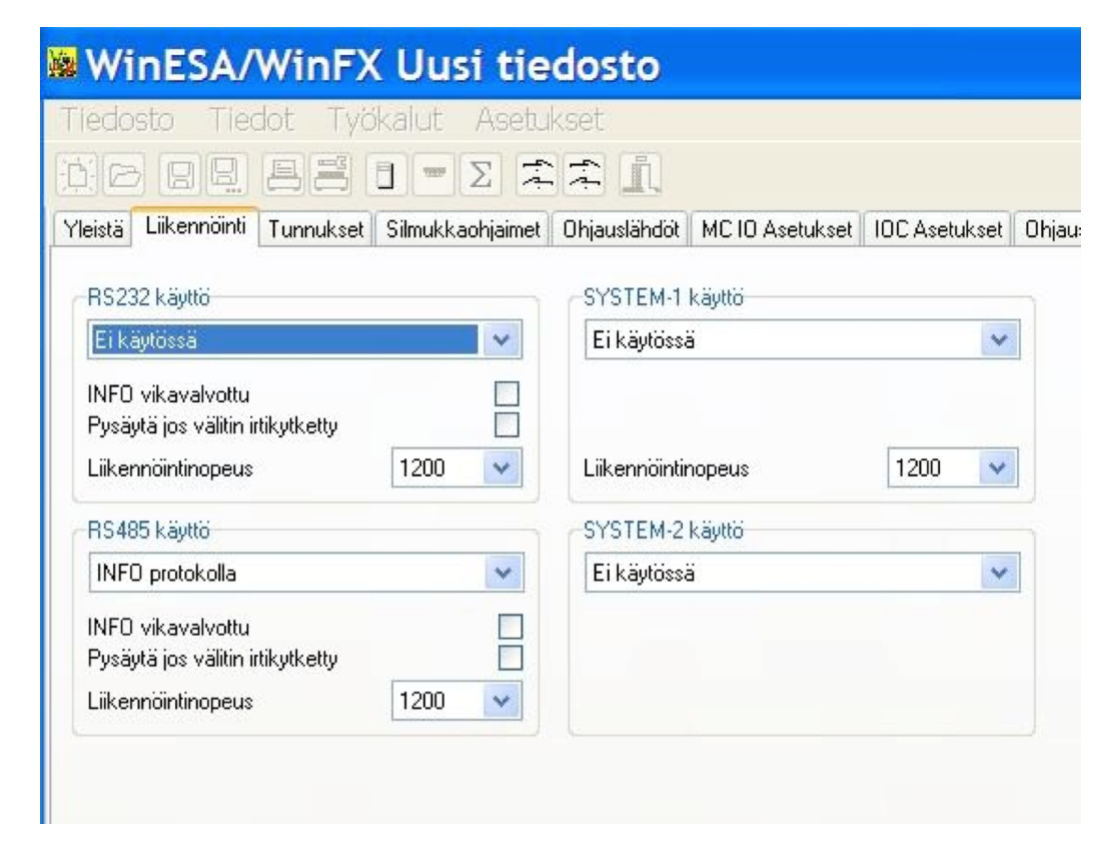

• 3. WinFX: The port needs to be configured in the panel to communicate with the SPT. This is best done using the WinFX Configuration Program. Set RS485 port protocol to 'INFO' and speed the port data rate to '1200' (see above for image).

UDL information for this item can be found here:
